Distilleries & Micro Distilleries
World Class Tanks & Equipment. Proudly Canadian.
Ripley can design and build the perfect production solution for your distillery, allowing you to develop your growing business. We recommend planning and ordering custom tanks as far ahead as possible. Ripley systems work to accommodate all of the potential variables during your build, getting you your tanks sooner and with fewer hurdles.
As the beverage industry continues to evolve, Ripley is currently in the process of bringing in the materials needed to respond to the increased requests for building Micro-Distillery tanks. We are currently looking to explore further opportunities to represent and work with distilleries in Canada. We are a custom tank fabricator that can design and fabricate tanks to suit your specific requirements. All Ripley tanks are fabricated using standard material sizes and normal tank dimensions.
Shop drawings must be approved prior to fabrication.
CONTACT RIPLEY
“Ripley Stainless has made many high quality tanks for the breweries I have worked at over the years, and Ed Ripley has always stood behind his work. If you’re looking for good tanks at a fair price, contact Ed Ripley.”
Fal Allen
Anderson Valley Brewery Company

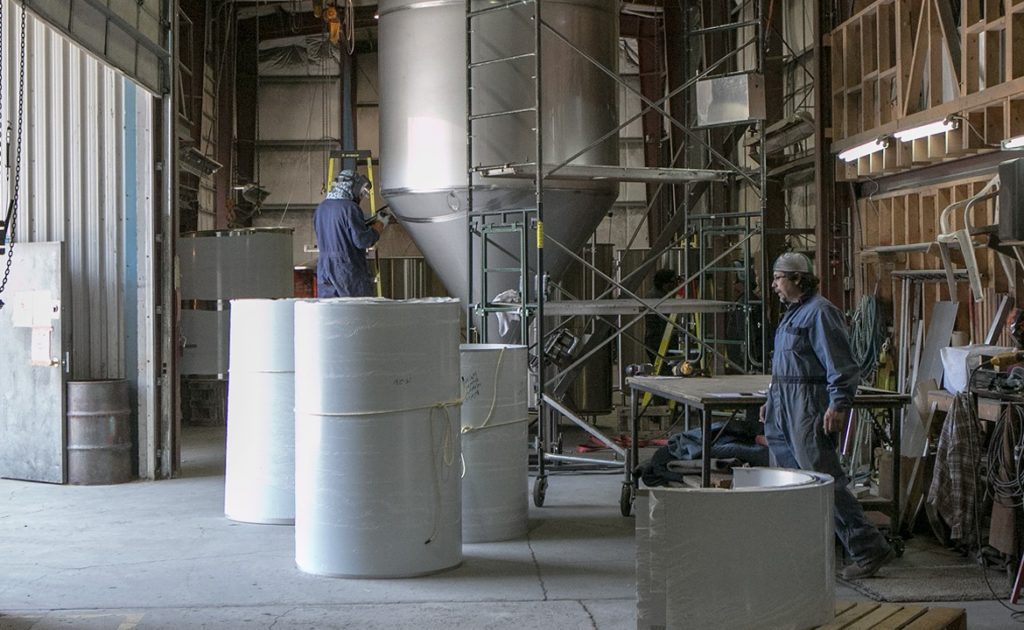

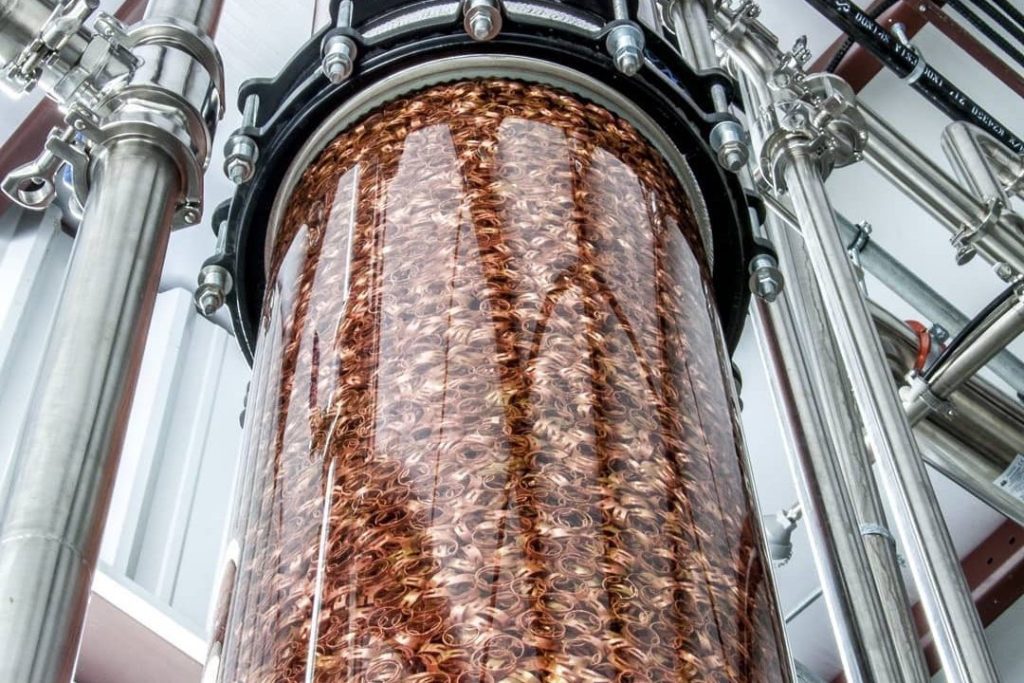

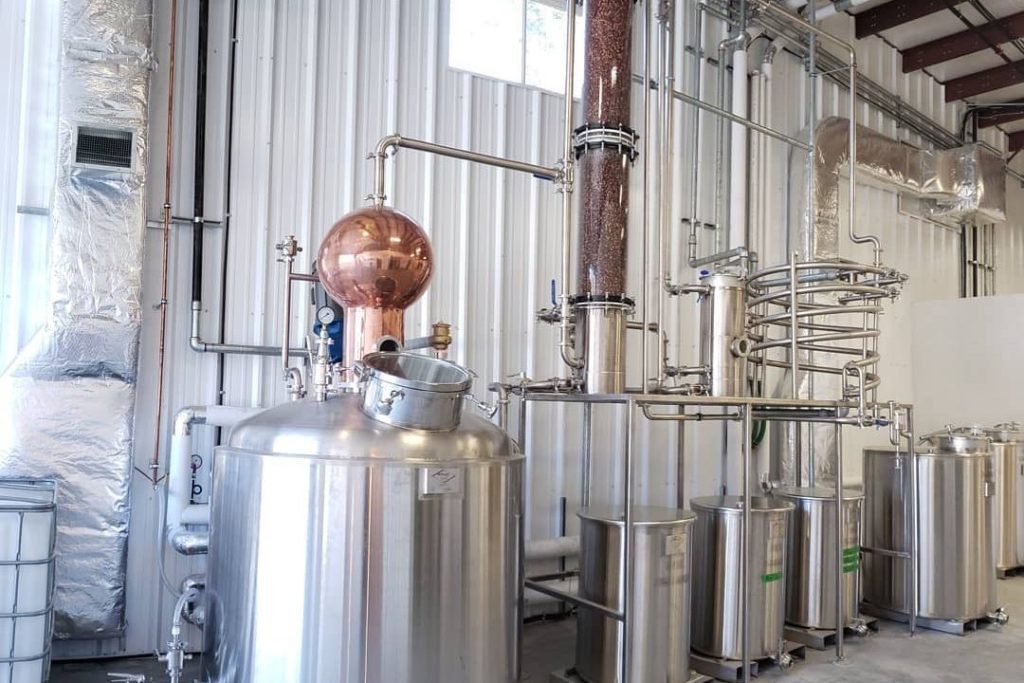

DISTILLERY TANK FABRICATION IN SUMMERLAND, BC, CANADA
Click the links below to learn more about our tank options.

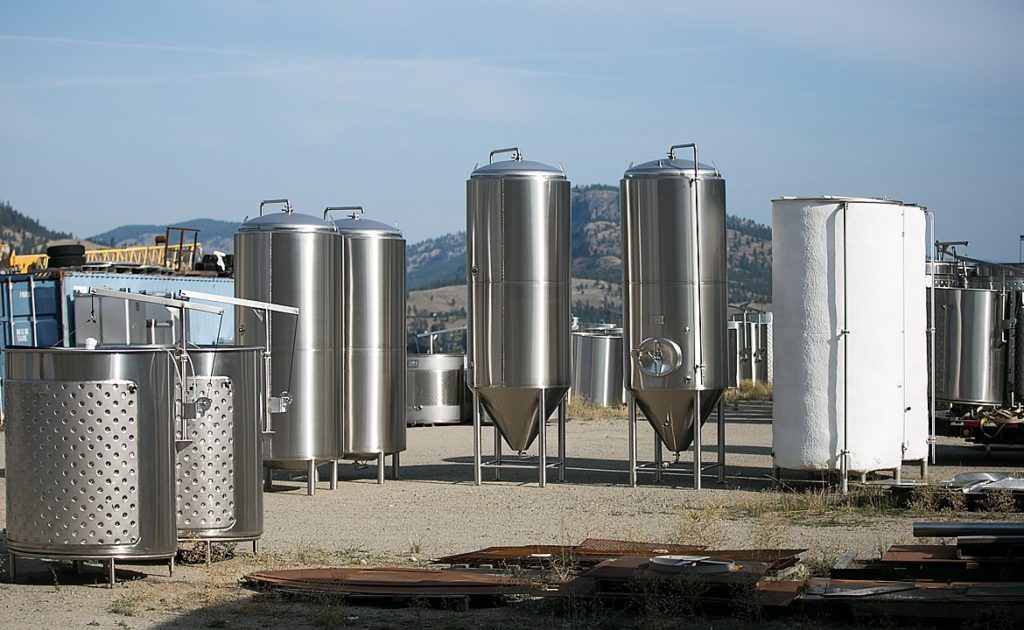

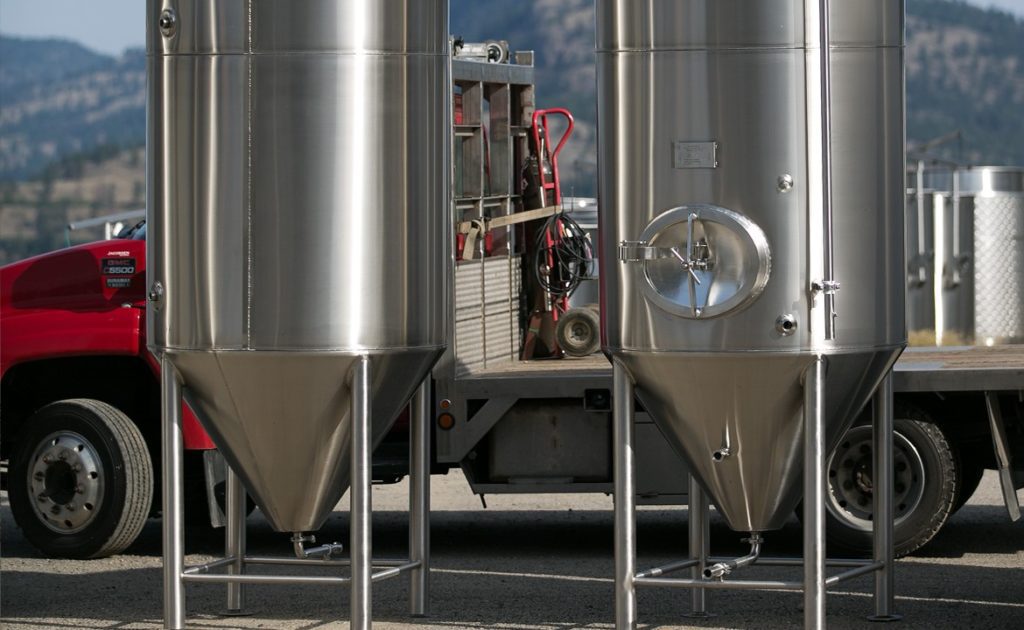

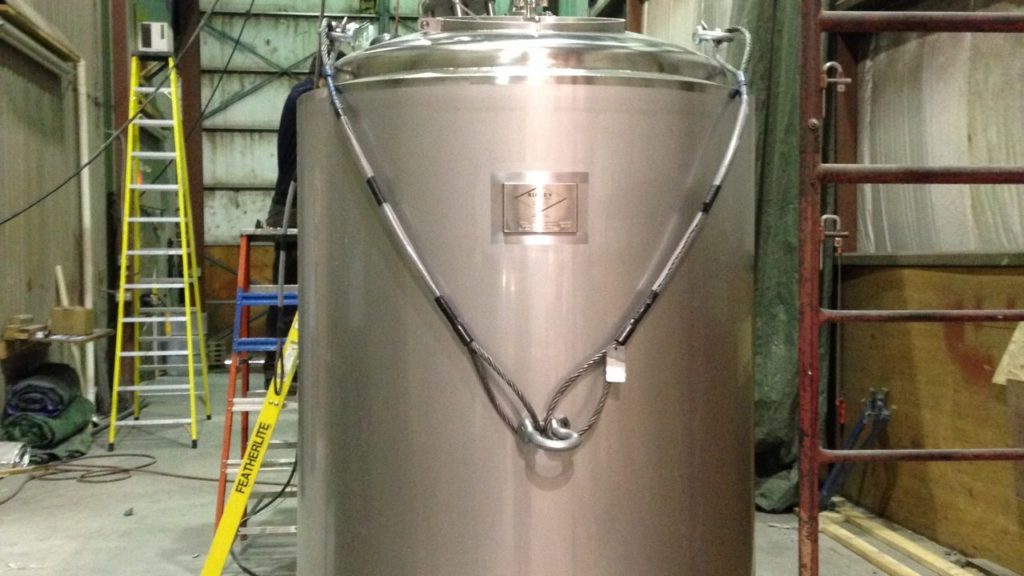

FERMENTATION TANKS
Ripley’s fermentation tanks are used by distillers and brewers as holding tanks for liquid that requires time to ferment.
SPECIFICATIONS
| Dimensions | Customized to the needs of each customer |
| Capacity | Nominal capacity plus 25% |
| Top Head | ASME dished head (gauge varies based on tank diameter |
| Lifting Lugs | (2) lifting lugs – minimum |
| CIP | Removable CIP & fixed spray ball (180° up, 65mm) on 3” TC with 1½” TC line down to working height |
| Vent Line | Only on tanks larger than 60HL
1½” or 2” TC vent line from top head to working height |
| Sidewall | Thickness & size varies based on tank size |
| Bottom Cone | 55° to 60° cone angle, 2” knuckle radius to cone – thickness varies based on tank size |
| Cooling Jacket | On sidewall and bottom cone – number of zones determined by tank size
Maximum “20” psi working pressure, 1” to 1½” FNPT inlet / outlet |
| Thermowell | (2)½” FNPT 10” thermowells |
| PRV | (1) 1½” to 2” TC Vacuum Pressure relief valve on top head or vent line tee. |
| Legs | 4-5 pipe legs depending on tank size including bracing and adjustable feet |
| Insulation | 2” insulation on sidewall and bottom cone only – minimum R12 value |
| Cladding | All welded 14 gauge cladding on sidewall & bottom cone |
| Manway | 14” x 18” side oval in/out swing “no lip” manway
(also manufactured by Ripley Stainless Ltd) |
| Sample Valve | 1” TC RSL Sample valve |
| Drain | (1) 1½” or 2” TC butterfly valve c/w “J” pipe |
| Racking | (1) 1½” or 2” TC butterfly valve |
| Tank Material | All quality inspected 304 stainless steel alloy |
| Exterior Finish | 2B with all welds ribbon polished |
| Interior Finish | 2B with all welds TIG welded with heat stain removed |
| Tank Pressure | Maximum “14.9” psi |
Additional Options:
- Bright exterior spin polish
- RSL 18” Swivel cone manway
- Cooling Jacket – maximum”35” psi working pressure – maximum”50” psi working pressure
- 13” x 17” side oval manway
- Sample valve options
- 1½” or 2” Butterfly valve on vent & CIP lines
- Copper banding
- Rotating sprayheads
- Interior weld finish ground and polished to 120 grit

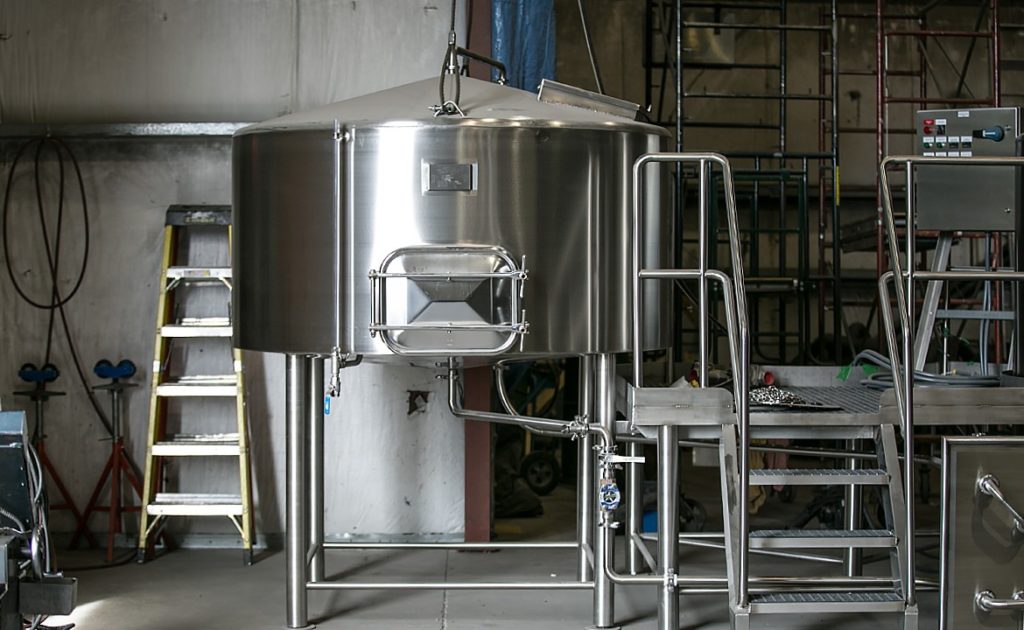

MASH TUN / MIXER TANK
The Mash Tun or Mixer Tank is also known as a Mash Tank. Primarily used for beer, mixing crushed grain and hot water. All Ripley Stainless tanks are made to your specifications.
SPECIFICATIONS
| Type | (2) Vessel Brewhouse Systems |
| Capacities | 10HL – 30HL |
| Dimensions | To be determined by RSL & Customer
Top: 12 gauge cone, certified 304, 2B stainless steel alloy 1½” TC CIP with, (2) sprayballs 6” dia. vent stack with condensate ring x 10’ tall with china top 16” x 20” rectangular opening and lid – no seal 30 RPM, 2-3hp motor & drive unit for hand lifting mixer paddles All inside welds are TIG welded with heat stain removed |
| Sidewall | 14 gauge sidewall, certified 304, 2B stainless steel alloy
Steam heating jacket in (2) zones – Maximum “35” psi working pressure 1½” x 1” Whirlpool inlet 10” long thermowell, ½” NPT ¾” HD sight gauge tubing for volume level 2” insulation 14 gauge stainless steel all welded cladding, #4 spin polish finish All inside welds are TIG welded with heat stain removed |
| Bottom | 12 gauge 2-stage cone, certified 304, 2B stainless steel alloy
1½” TC drain 14 gauge stainless steel all welded cladding, 2B finish (4) Stainless steel legs with adjustable feet All inside welds are TIG welded with heat stain removed |
| Stainless Steel Working Platform
Dimensions |
to be determined by RSL & Customer
Approximately 4’ between (2) vessels Approximately 3’ high c/w railing and stairs Bolted to tanks Fiberglass decking All 304, 2B stainless steel framework construction |
| Swing Link Panel | Mounted in front of stainless steel platform
(9) outlets and (1) pump mount (pump not included) 1½” tubing with DN 40 unions on face of swing link panel All other not regularly used fittings are 1½” TC |
| Piping – For complete (2) Vessel Brewhouse System | 1½” sanitary tubing connects Swing Link Panel to tanks
(7) 1½” TC butterfly valves Connections for Heat exchanger & pump TC unions are also provided so that Brewhouse can be disassembled for shipping & installation (1) 1½” TC butterfly valve behind swing link panel for tangential inlet to Brew Kettle The Ripley Stainless Standard (2) Vessel Brewhouse system is so unique that you could add a third vessel to reduce your brew turn over time. To plan for the third vessel we can also provide (4) extra ports in the Swing Link Panel, a second pump, provisions in the electrical panel and adjust the platform to accommodate the third tank. |
* VALVES NOT INCLUDED
Additional Options:
- 1½ or 3 HP pump with VFD x 1½” TC fitting
- Heat Exchanger for 10-25HL system (Off shore & USA models available)
- Stainless Steel Electrical Control Panel – Brewhouse
- Stainless Steel Electrical Control Panel – Fermentation Tanks
- Butterfly Valves
- DN Fittings
- Stainless steel pump cart
